CHARCOAL BARBECUES GO DIGITAL

OVER 45 YEARS OF CRAFTMANSHIP

Built on tradition

Leading-edge quality and innovation

Load the feeder with charcoal and light · Set the desired temperature · Let the fan do the work

1

2

3

Reaches 225°F in 7 minutes or 700°F in 13 minutes

With the push of a button, the digitally controlled fan moves air flow from the hopper to the cooking chamber and maintains the desired cooking temperature.

THE GRAVITY SERIES

OUT OF STOCK

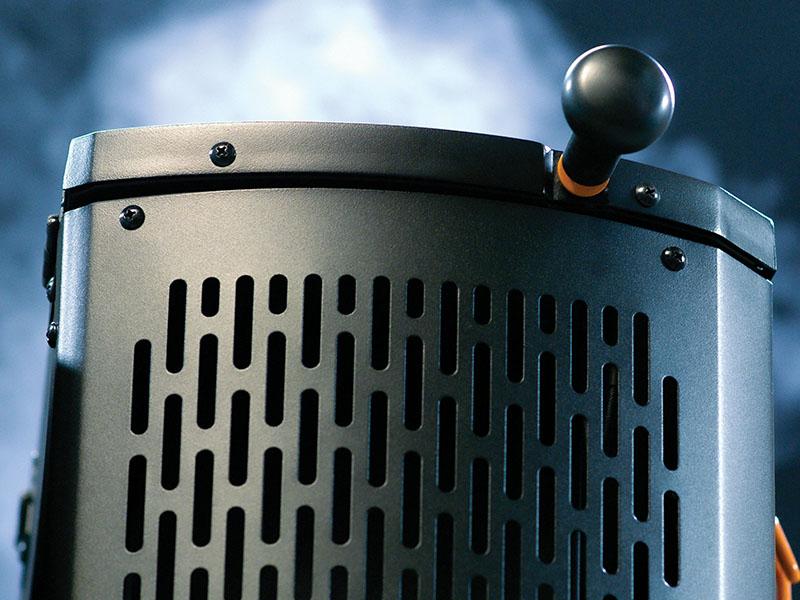

GravityFed™ Charcoal Hopper

Redefine charcoal cooking with the GravityFed™ Hopper that holds up to 15 hours of fuel using lump or briquette charcoal. No need to remove charcoal after each use!

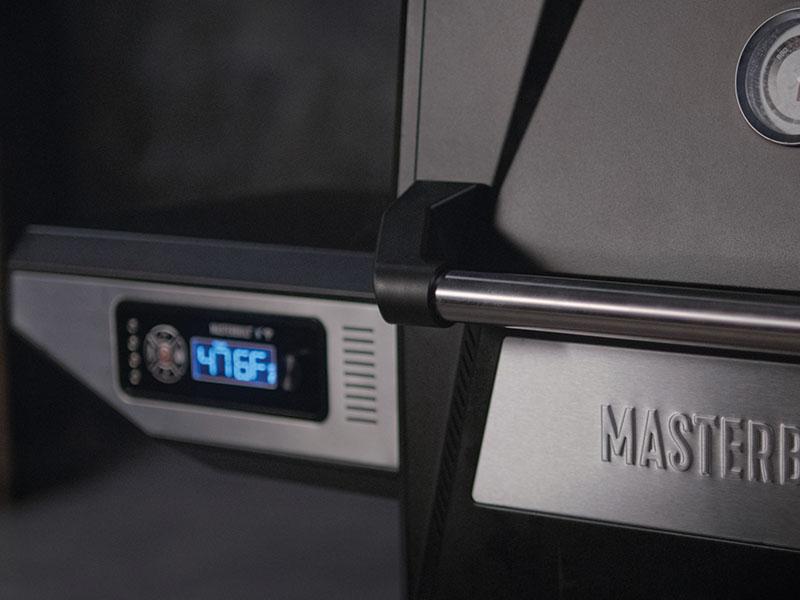

DigitalFan™ Control

With the push of a button, the digitally controlled fan moves air flow from the hopper to the cooking chamber and maintains desired cooking temperature.

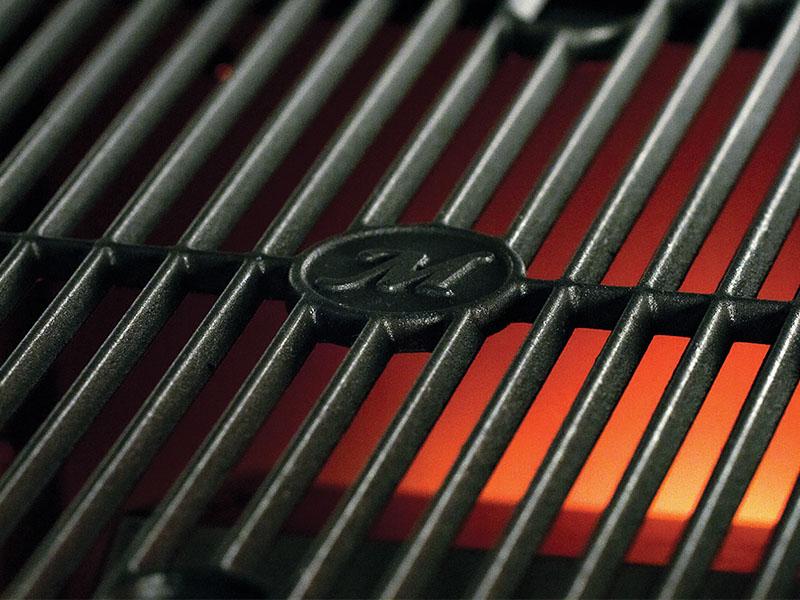

Smoke & Sear Facility

Reach 700°F in 13 minutes to grill + sear or 225°F in 7 minutes for low + slow smoking. Includes reversible cast-iron grates to smoke + sear.

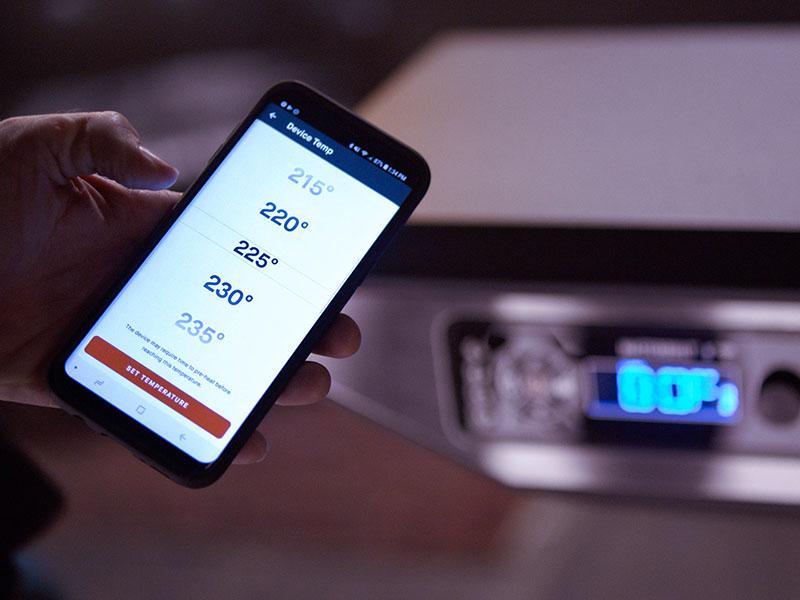

WiFi and Bluetooth Capability

Set it and go with your smart device. Learn to master the art of smoking, grilling and more with the Masterbuilt App.

Full control of your BBQ

With an improved design and Bluetooth and Wifi connectivity creating your signature dishes has never been easier. Take control of your BBQ.

Gravity Series™ Rotisserie Kit

Enhance your cooking experience with the Masterbuilt® Gravity Series Rotisserie Kit. The spit rod and adjustable meat claws hold up to 20lbs of your favorite food and allow it to cook slowly and evenly over the charcoal heated grates. Attach to either the Gravity Series 560, 800, or 1050 Digital Charcoal Grill for a charcoal flavor that just can’t be beat.

DIGITAL CHARCOAL SMOKER

The Masterbuilt® Digital Charcoal Smoker is the first of its kind – smoked charcoal flavor with digital controls. Set the temperature on the digital control panel or your smart device and the DigitalFan™ maintains the desired cooking temperature. The charcoal tray holds 7 kgs of briquette charcoal or 5.5 kgs of lump charcoal for up to 13 hours. Master the art of charcoal smoking with Masterbuilt.

LOAD IT

Load up to 7 kgs of briquette charcoal or 5.5 kgs of lump charcoal for up to 13 hours of cooking

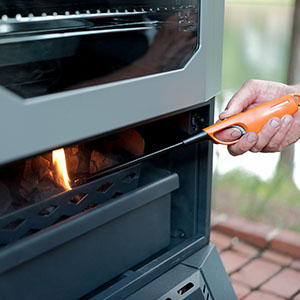

LIGHT IT

Use paper or fire lighter to ignite

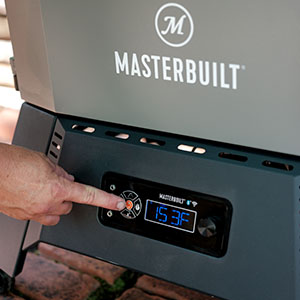

SET IT

Set temperature on the WiFi and Bluetooth enabled control panel or your smart device

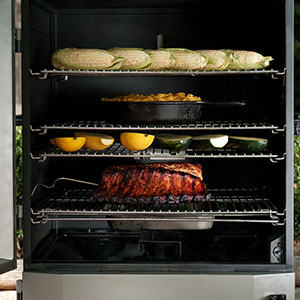

CAPACITY

Large capacity with four racks

DIGITAL FAN CONTROL

With the push of a button, the digitally controlled fan moves air flow to the cooking chamber to maintain desired cooking temperature

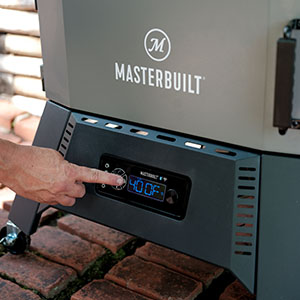

VERSATILITY

Reaches 110? C in 20 minutes or 205? C in 17 minutes

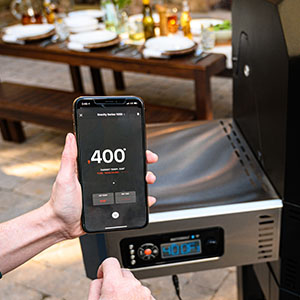

WIFI BLUETOOTH CAPABILITY

Set it and go with your smart device. Learn to master the art of smoking, grilling and more with the Masterbuilt App

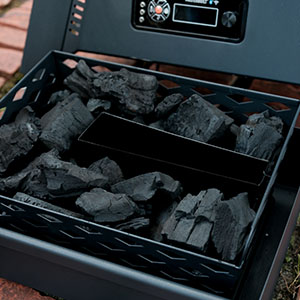

FLAVOUR

Charcoal taste with the ability to add wood for more unique smoke flavour

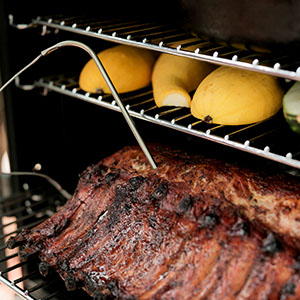

SIMPLICITY

Ability to have up to four meat probes (1 included) to monitor your recipe

MASTERBUILT ACCESSORIES

THE MASTERBUILT GRAVITY SERIES 1050

FEED A COUPLE OR FEED A CROWD

7
RACKS OF RIBS

17
CHICKENS

67
SAUSAGES

45
BURGERS

Watch the Videos

FAQ

Masterbuilt has listened to Gravity Series user feedback and our design and engineering teams have made the following updates: updated lid/door switches for durability, porcelain coated middle and upper charcoal hopper, and a re-designed charcoal grate for less charcoal fall through. These new changes have been implemented in the Gravity Series 800 Griddle and will be included for the 560 & 1050 models arriving in 2021. For those wishing to upgrade, we will have all parts available for purchase on our website in 2021.

The Flat Top Griddle is exclusive to the Gravity Series 800. It is only available for this model due to the unique manifold required to operate the flat top surface.

No, these are meant to peel away without damaging the unit.

Yes, it is very important to preseason your grill before cooking. Pre-seasoning helps to burn off any chemicals and oils left over from the manufacturing process.

Steps to pre-season your grill:

1. Fill the hopper with charcoal approximately ¼ – ½  full.

2. Start your grill following the START-UP instructions and set the temperature to 250°F (121°C) for 60 minutes.

3. Next, set the temperature to 400°F (204°C) for 30 minutes.

4. After 30 minutes, shut down the grill following the SHUTDOWN instructions.

5. Allow grill to cool COMPLETELY.

6. After the grill has cooled, use a napkin or cloth to rub a light coat of cooking oil on smoke and sear grates, warming/smoking racks, charcoal grate and the inside of the grill lid and body.

7. Then, repeat steps 3-6 at a temperature of 350°F.

*Frequent seasoning helps to prevent rusting. If rusting occurs clean with a steel brush, apply vegetable shortening and heat as indicated above.

Lining your racks or grates with foil is not advised for optimal air flow and cooking results.

No, slides should be removed from the unit while cooking.

A lot of smoke is normal after your charcoal is lit when building a fire. As heat builds, the smoke will change to a thin blue smoke, this means you are ready to cook.

No, fire will bridge upward if the lid is left open.

For On-Demand smoke, add 1-2 chunks (no larger than your fist) directly to the ash bin. This will last approximately 2-3 hours.

For Controlled smoke, add four (4) pounds of charcoal and one (1) wood chunk, creating layers of charcoal and wood chunks.

No, this is not recommended.

No, we do not recommend smoking with any wood chunks larger than the size of a fist. Chunks larger than fist size will create too much heat on the door and cause damage to the unit.

Yes. It’s normal for heat to escape when the grill list is open. However, if the temperature is set to anything under 500°F and the lid is opened, the DigitalFan will run continuously to try and maintain the set temperature. If the temperature is set to anything above 500°F and the lid is opened, the grill will default the temperature to 500°F for safety. Once the lid is closed, the grill will return to the set temperature.

Close the all lids. Press and hold the Power button until the grill powers off. The two slides will be used to smother the fire. Put the small slide through the bottom slot and the larger slide through the upper slot. If the slide will not go in fully, it may have slid behind the shroud and was not properly inserted in the sleeve. Pull the slide out, make sure it is parallel to the slot and try again. The “M” should be facing upright.

*Failure to insert slides will cause remaining charcoal to burn and could cause damage to grill.

*Do not store or cover until the grill has completely cooled.

Grill should be covered in a dry area, away from direct sunlight.

For lump charcoal, if the lumps are too big, large voids are created in the hopper. Large lump charcoal reduces the overall amount of charcoal in the hopper to burn. For example: large lump charcoal with voids may only be 7 lbs of charcoal, whereas medium lump with minimal voids may be 10 lbs. 10 lbs will burn longer than 7 lbs. In addition, charcoal varies by brand and not all charcoal is made the same. Material sources, density and characteristics are different. The length of the burn time also depends on the outside temperature.

All Gravity Series model grills come with a one year warranty from date of purchase with proof of purchase.

See the
Error Codes and Troubleshooting Tips PDF

See the
Fan Issues and Troubleshooting Tips PDF

Step 1: Ensure all connections are properly connected.

Step 2: Unplug the fan from the wiring harness near the hopper. Then power on controller and set temp. If controller resets/turns off then you have bad wiring.

Step 3: Unplug the fan from wiring harness near the hopper and plug the fan directly into the controller, bypassing the wiring harness. Power on controller then set your temperature. If controller resets/turns off then the fan is bad.

Step 4: Unplug the wiring harness and fan, turn on controller and set temp. If controller resets/turns off then it’s the controller.

No, this was preassembled on the newer models to hold the handles in place for shipping.

The metal inserts in front of fire brick are designed to protect the soft fire brick in transport and production. The metal panels are expected to degrade after use and the firebrick will be exposed. Firebrick material is food safe and capable of handling the high temperatures of the hopper burn area.
